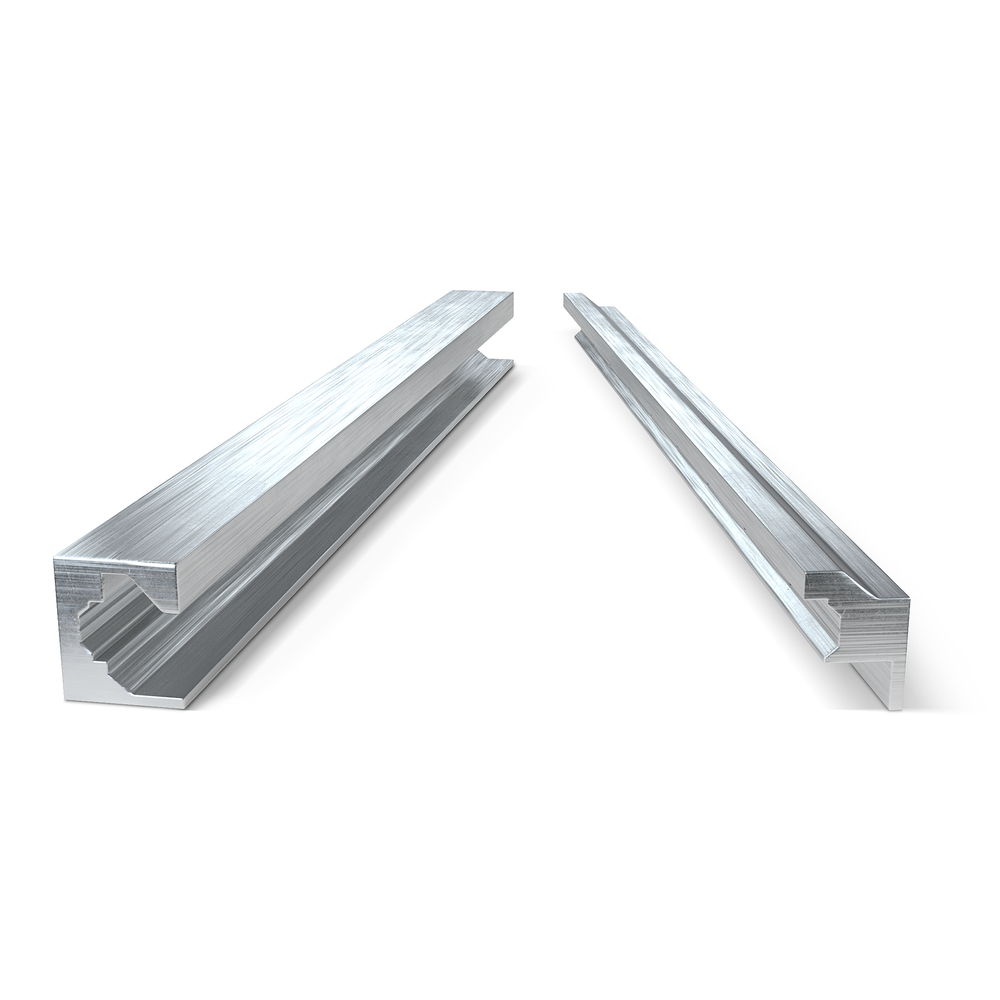

Hovr Bracket Slim
Made from 6063 T6 aircraft-grade aluminum, the Hovr Bracket Slim has a maximum load capacity of 125lbs. 30 day money back guarantee. This bracket is best for shelves that want a slim appearance, but still want the strength that the Hovr Bracket provides. Learn more below.
First time ordering? Make sure you add-on the Installation Bit Pack.
Free shipping when your purchase is over $100 (excludes 8 FT brackets). Free shipping on 8 FT brackets when purchasing 4 or more.
International Patent
5x Stronger
The Hovr Bracket Slim uses a male and female bracket that interlock and screw together to form unparalleled strength. The average load capacity is 125lbs.*
ENGINEER APPROVED
Long lasting
Our average weight load capacity for an 8 inch depth is 125lbs for our Slim bracket. Have clients to be confident in your project. And withstand usage over time.
What our customers say
2 Quick Testimonials
Bracket Info
FAQs
In order to save some material, as long as the shelf and bracket are installed correctly, the bracket is strong enough to be using the 1:2 ratio (depending on final depth & weight load*).
Meaning that the brackets can be 1/2 the length of the shelf itself. But we always suggest to use 2 studs at a minimum.
No. 99% of the time, you will not be able to see underneath the shelf and the set screws. If that is still a concern, you can purchase a filler for the holes.
We generally recommend your shelf be at least 1.5" thick when using the Hovr Slim Bracket
This is because the bracket itself is 1 1/8" thick, so you will need at least 1/8" of additional material on the top and bottom of your shelf to house and conceal the bracket. Just remember to leave yourself that 1/4" of shelf thickness when selecting your material.
In general, it's best to leave at least 1/4" at the top and bottom of your shelf, since its far too easy to blow out 1/8" with the smallest movement. See below for a diagram of the recommended shelf thickness.
Tech Specs
Height
• 1.125 Inches
Depth
• 0.878 Inches
Length
• 23.75 Inches +/- 1/4" (2 FT Brackets)
• 47 Inches +/- 1/4" (4 FT Brackets)
• 94 Inches +/- 1/4" (8 FT Brackets)
Mounting
• Male Bracket to Wall
Color/Finish
• Mat Aluminum Finish - Non-Coated
Gauge/Material
• 6063 T6 Aluminum
Weight Capacity
• 150lbs Average at an 8 Inch Depth*
Order Info
What's In The Box
• Hovr Bracket System
• 1 x Corresponding Alan Key
For each 2 FT
• 2 x 3.5” male bracket screws
• 6 x 2.5” female bracket screws
• 2 x 1/2” set screws
For each 4 FT
• 4 x 3.5” male bracket screws
• 12 x 2.5” female bracket screws
• 4 x 1/2” set screws
For each 8 FT
• 8 x 3.5” male bracket screws
• 24 x 2.5” female bracket screws
• 8 x 1/2” set screws
Each Order Comes With
• No more floating shelf sag
• 30 Day Money Back Guarantee
• All Required Screws
• Any length possible (you can combine brackets together)
• 17/64 HSS Steel Drill Bit (Set Screw Install)
• 5/16 #18 HSS H3 Tap Bit (Set Screw Install)
• Drill Bit Small (3/16”)
• Epoxy Glue (Glue Install Method)
• The bits can be found in our Installation Bit Pack
We recommend you grab an Installation Bit Pack to ensure you have everything to go ahead with your installation.
It comes with the 17/64 HSS Steel Drill Bit & 5/16 #18 HSS H3 BTM Tap Bit
You may also like
![Additional Hardware Pack [Classic]](http://hovrbracketsystem.com/cdn/shop/products/vertical-box-mockup-02_1080x.png?v=1598983623)
![Additional Hardware Pack [Classic]](http://hovrbracketsystem.com/cdn/shop/products/kreg-self-drilling-screws-sml-c150-100-64_1000_480x_a2422ff5-770e-457d-8203-d62350415ae6_480x.jpg?v=1598983624)
Customer Reviews

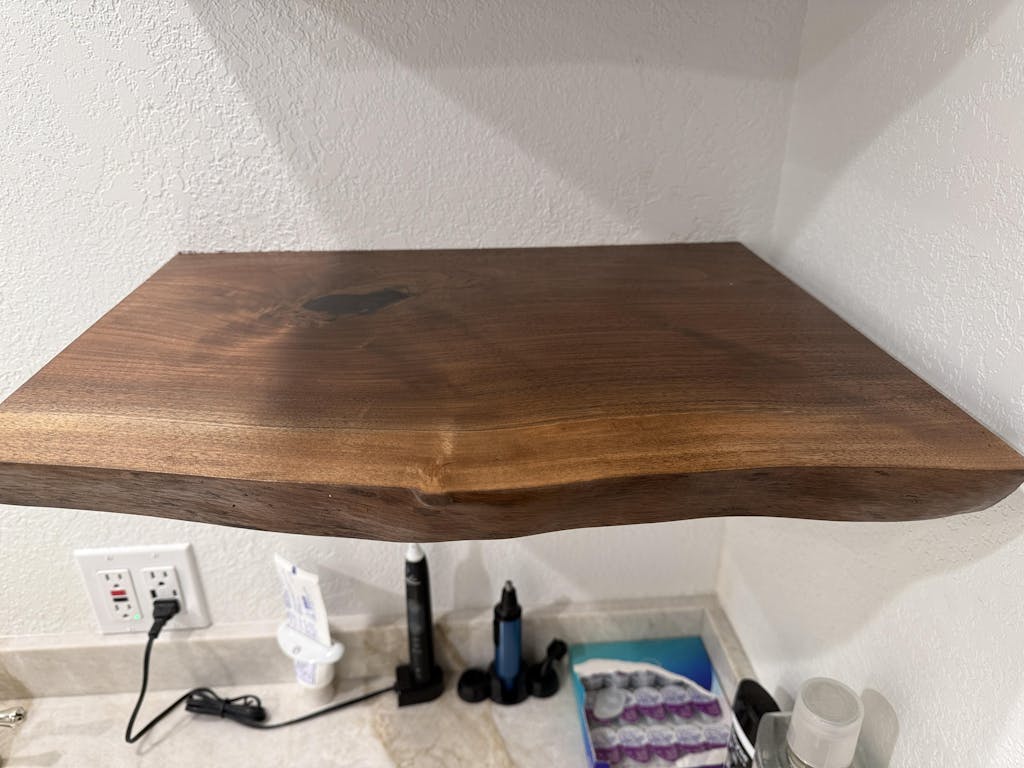

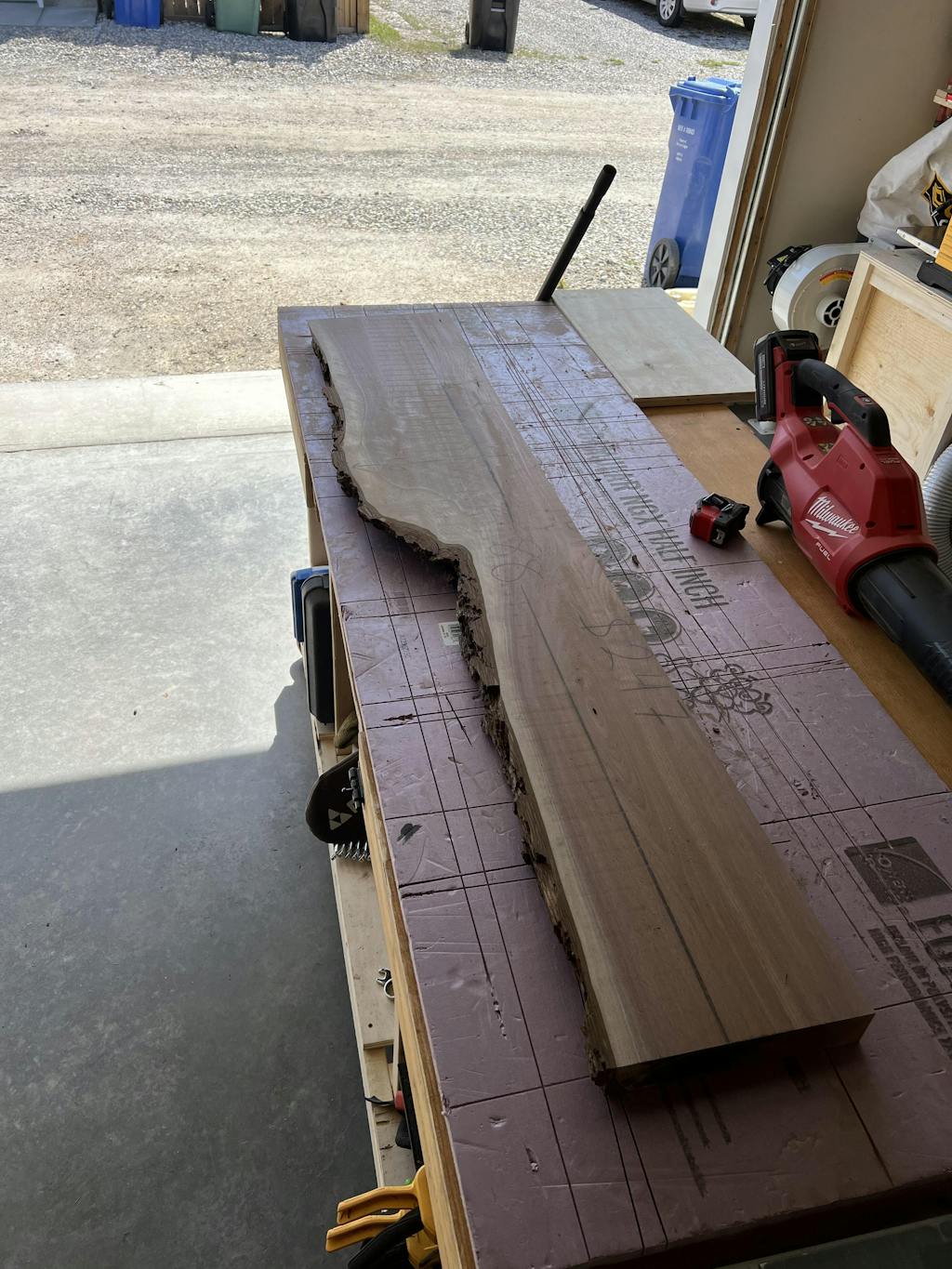

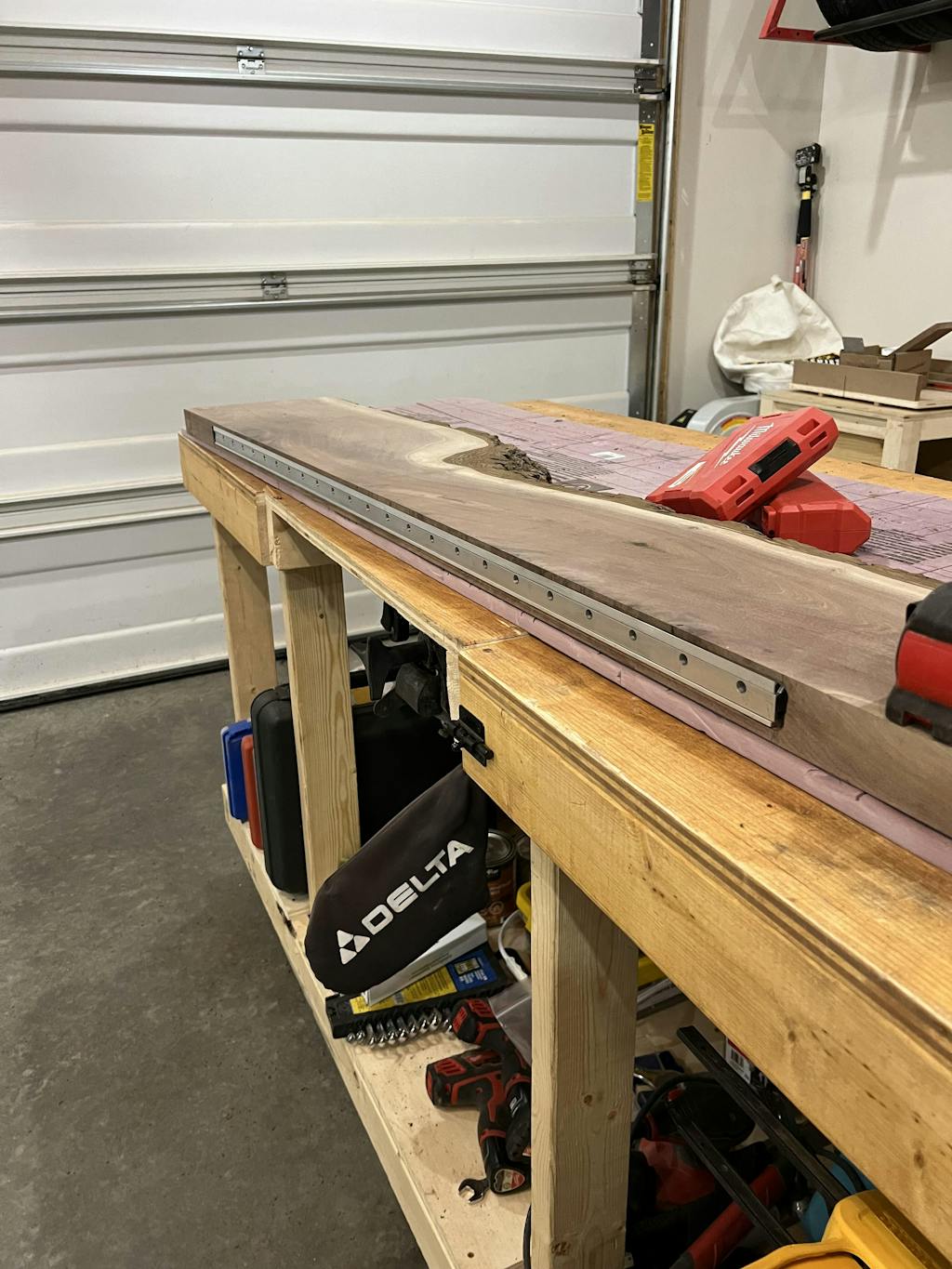

Love the addition of the slim bracket makes life easier when finding 2.5” material is tricky ! All I would say is make sure you predrill your mounting screws deep enough if using hardwood. I had 2 of the supplied screws shear off when trying to mount into the back of a live edge walnut shelf
Hi Dan, Thanks for your review and sharing those pics!
The screws issue is a brand new one thats popped up in the last 2-3 weeks that I've never seen before then, but we are looking into it - it's possible we received a bad batch. We're doing our best to get to the bottom of it.

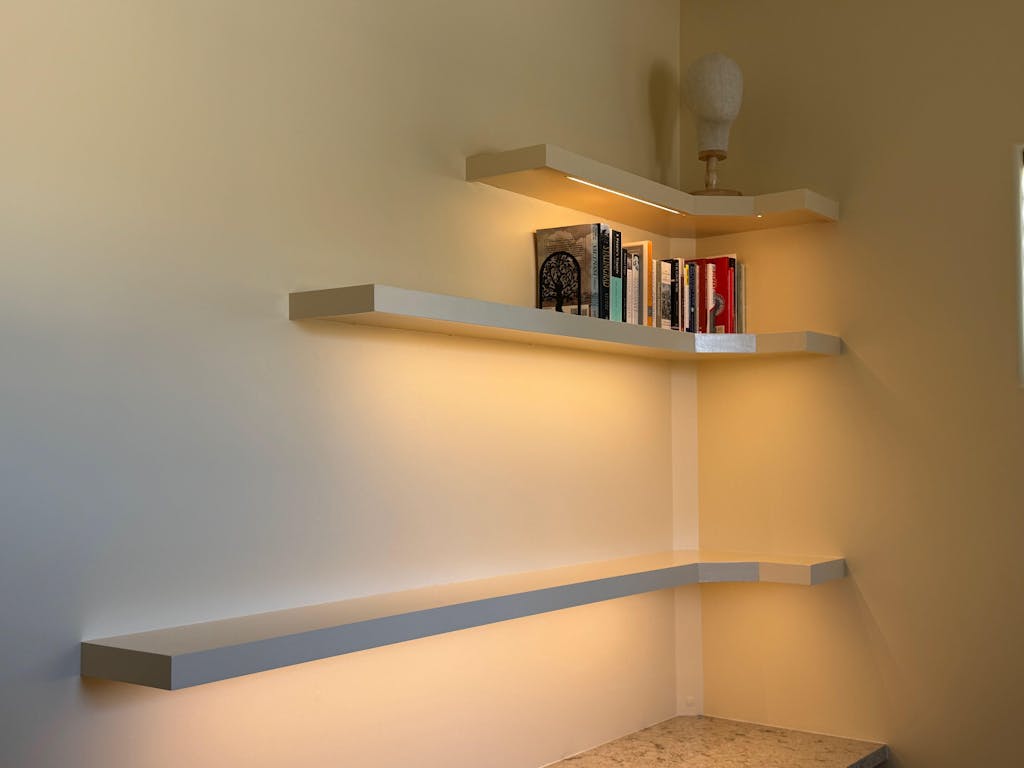

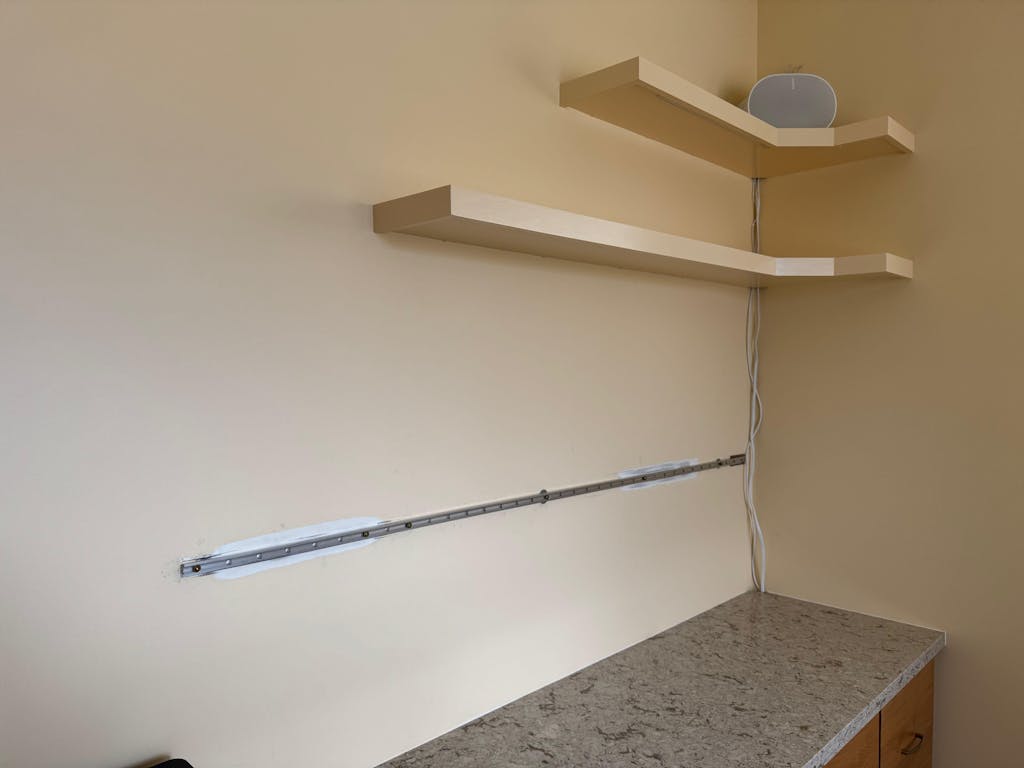

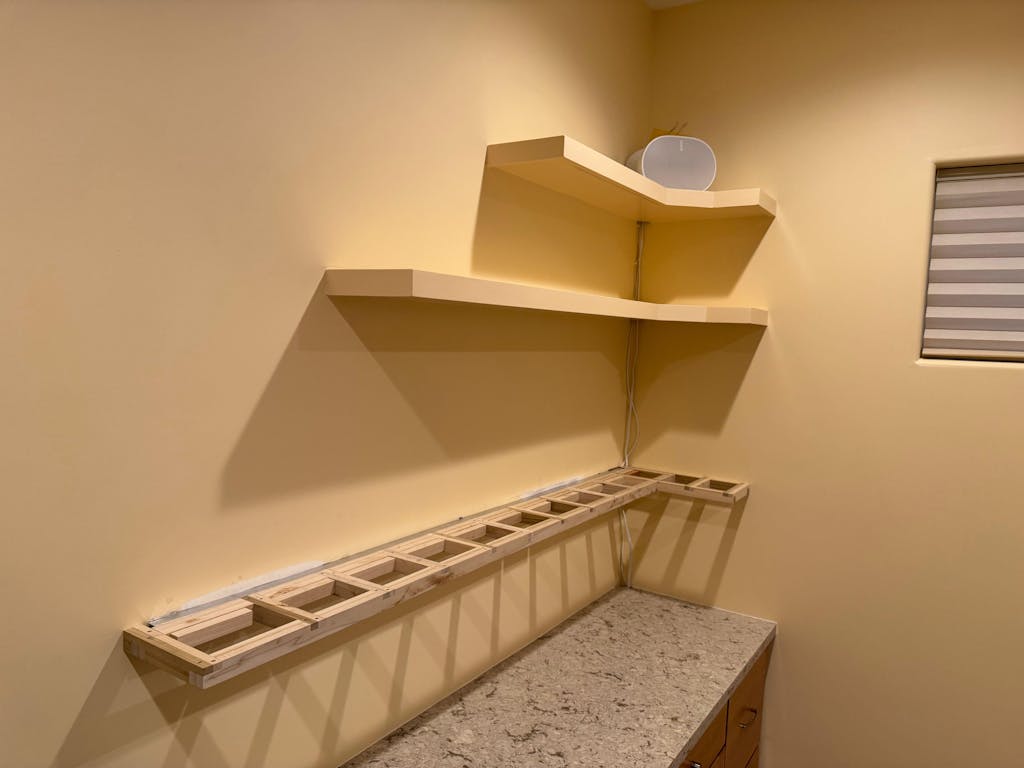

We used the “slim” line of Hovr brackets because I wanted a thinner, less bulky look in my small galley kitchen. They turned out beautiful!
Thank you for your review! We're thrilled to hear that you love your new floating shelves and that our 'slim' Hovr brackets were the perfect fit for your small galley kitchen. We appreciate your feedback and are happy to hear that they turned out beautifully. Happy organizing!
Product received was as described by vendor. Product received in a timely manner in excellent condition. The ordering process was easy to understand and accurate.
Thanks for the review Fern!
Worked just as promised
Glad you liked it Tom, thanks for the review!
